    Water Cooling Magnetic Separator Machine Wet High Intensity Magnetic Separators raw mine feldspar quartz

    Ask Lasest Price
    Brand Name : WANDAYE
    Model Number : WD500
    Certification : ISO9001:2008
    Price : Negotiable
    Delivery Time : Within 25 days after the advance payment is made
    Supply Ability : 15pcs per month
    • Product Details
    • Company Profile

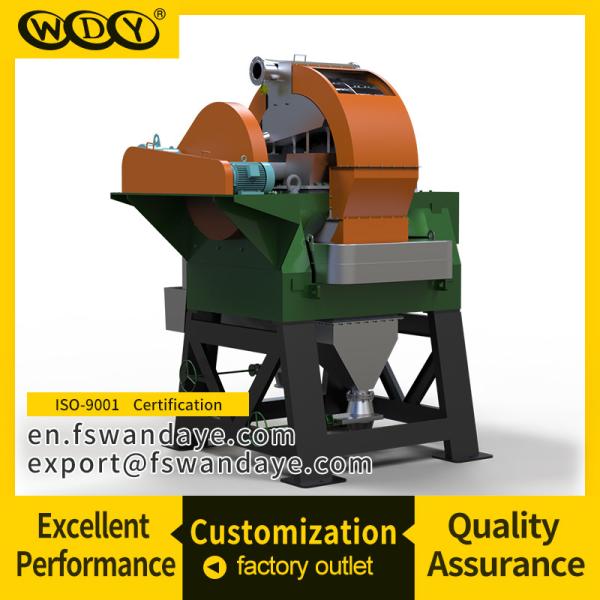

    Water Cooling Magnetic Separator Machine Wet High Intensity Magnetic Separators raw mine feldspar quartz


    Wet High Intensity Magnetic Separators , Magnetic Separator Machine


    Water Cooling Magnetic Separator Machine Wet High Intensity Magnetic Separators raw mine feldspar quartz


    We supplier of wet high intensity magnetic separator. Wet high intensity magnetic separator designs, develops, manufactures and markets magnetic separation equipment for beneficiating weakly magnetic minerals, and for purifying non-metallic minerals. We professionals have specializes in the field of magnetic separation technology.

    Applications:

    Wet high intensity magnetic separator is suitable for processing fine, weakly magnetic minerals, such as hematite, limonite, ilmenite, manganese, wolframite, tantalum-niobium, and etc. It is also suitable for removing iron and titanium from non-metallic minerals such as quartz, feldspar, nepheline, fluorite, ceramic material, and etc. our company vertical ring and pulsating high gradient magnetic separator uses combined force field of magnetism, pulsating fluid and gravity to beneficiate weakly magnetic minerals with the advantages of large beneficial ratio, high recovery, matrix not easy to be blocked and excellent performance.

    The maximum feed capacity is up to 120t/h. Owing to its unique design and its excellent performance for mineral beneficiation, it has successfully applied in several industries.


    Technical data

    ModelWD-500
    Swivel outer diameter(mm)500

    Ore size(mm),

    (-200 mesh %)

    -1.02

    Ore

    density(%)

    10-40
    Ore pulp transit capability(m³/h)0.25-0.5

    Dry ore throughput(t/h)

    0.03-0.125
    Rated background magnetic field(T)1.0
    Rated energizing current(A)1200
    Rated energizing voltage(V)8.3
    Rated exciting power(Kw)10
    Swivel rotating power(Kw)0.18
    Rotating pulsation power(KW)0.37

    Pulse

    stroke(mm)

    0-50
    Pulse speed(times/min)0-400
    Water consumption(Mpa)0.1-0.2
    Water consumption(m³/h)0.75-1.5
    Cooling water processing(m³/h)1.5-2
    Weight of biggest parts(T)0.3
    dimension(length x width x height,mm)1800*1400*1320


    Note: Technical data and specification subject to change. Special wet high intensity magnetic separator can be made on request, customers have to just send their technical data and application required for our engineers.
